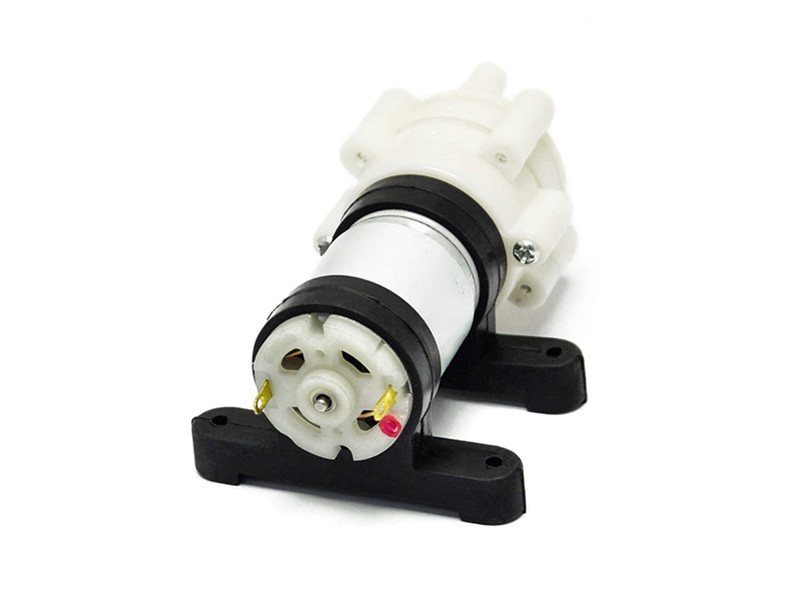

Small Water Pump

Micro DC 12V/24V Air Pump Air Diaphragm Pump

Micro DC 12V/24V Air Pump Air Diaphragm Pump
Micro DC 12V/24V Air Pump Air Diaphragm Pump
Micro DC 12V/24V Air Pump Air Diaphragm Pump
Micro DC 12V/24V Air Pump Air Diaphragm Pump

Description

Reviews

  • Material: food grade silica gel
  • Working voltage: DC 12V
  • Maximum flow: 1.5-1.8L/Min
  • Current: less than 500mA
  • Pump head: 5 meters, pump suction: 1.5 meters (test with water)
  • Users can also adjust the supply voltage according to their own conditions (you can lower the supply voltage, it is not recommended to increase) to reduce the current and flow rate. if the voltage is adjusted to 6V, the flow rate will be around 600ml/min, and the service life will be better.
  • This product is widely used in home appliances, medical, model, etc., mainly to achieve pumping, cold water circulation and other functions.





High quality silicone case

  • The design of the black silicone case has a fixed effect, and mainly plays the role of shockproof and silent.
  • When using the silicone fixing sleeve, do not block the motor cooling holes, so as not to affect the heat dissipation and service life!





Dimension

  • Inlet pipe diameter: 5mm, Outer Diameter: 8.5MM
  • The pump Size: 95mm(L)x47mm(W)x36mm(H)
