Laboratory Vacuum Pump

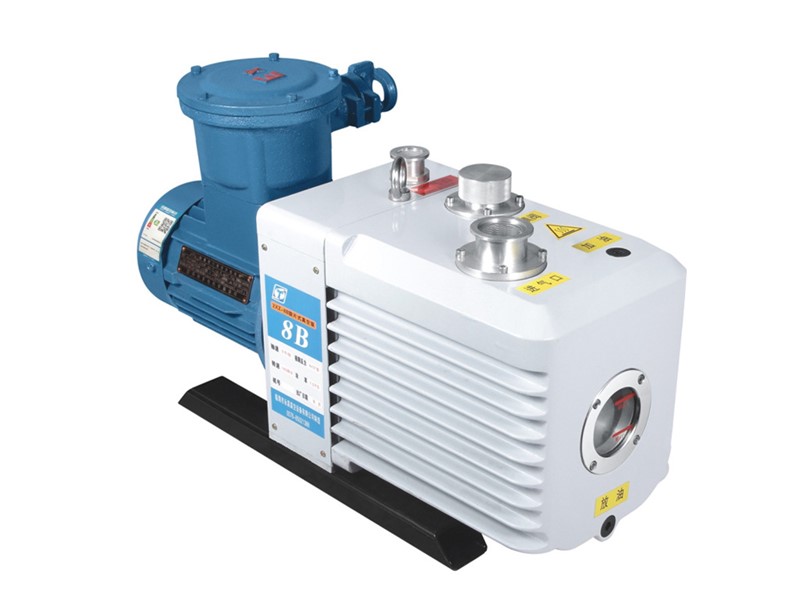

Explosion-proof direct-coupled rotary vane vacuum pump
Description
Reviews
Product description
This series of pumps are equipment for pumping out gas in flammable and explosive dangerous places with explosion-proof grade IIA, 1 old, and temperature group TI-T4. It is suitable for places where explosive gas mixtures exist, and is also used for methane or coal. Dust exists in the environment of coal mine underground (non-excavation working face).
Features
1.Small size, light weight, low noise.
2.Equipped with gas ballast valve, which can remove a small amount of water vapor.
3.Explosion-proof mark: ExdllBT4.
4.The pump adopts explosion-proof, fire-sealed, and intrinsically safe compound explosion-proof technology, which is safe and reliable.
Application field
It is widely used in petroleum, chemical, military, explosives, medicine, pharmaceuticals, scientific research, mines, oil depots, liquefied gas stations, gas pipelines, aviation and aerospace, laboratories and other related fields.
| Parameter | 2XZF-8B | 2XZF-15B |
| Flow/L/S (m3/h) | 8(28.8) | 15(54) |
| In RB FF+iPa Scoop of pressure | ≤6x10﹣² | ≤6x10﹣² |
| Ram pressure | ≤1.33 | ≤1.33 |
| Speed (r/min) | 1400 | 1400 |
| Energy supply (V/HZ) | 380/50 | 380/50 |
| Power (KW) | 1.5 | 1.5 |
| Inlet diameter | KF-40 | KF-40 |
| External diameter (mm) | KF-40 | KF-40 |
| Noise (dBA) | 66 | 70 |
| Oil Capacity (L) | 2.3-2.5 | 2.8-3.3 |
| Specification (mm) | 705 x 222 x 378 | 770 x 220 x 378 |
| Gross weight/ Net weight (KG) | 64/60 | 78/75 |
See the download file for details
